It is an automatic and self-cleaning equipment, is best solution for obtaining a large amount of collection of the solids present in the wastewater, considerably reducing the separation times in the pre-treatment and to low cost.
Extremely simple, economical and versatile, it has been designed by EVOTECH technicians to last 25/30 years, in addition to being very easy to have a many ease of customization both in size and filtration.
It is easy to install, both in indoor and outdoor environments and in existing and deep channels, these advantages have led to a strong increase in its use in many civil and industrial sectors. The construction material is Stainless Steel AISI 304L or AISI 316L

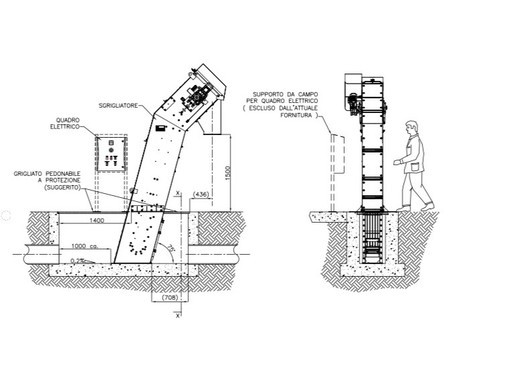

The structure is composed of a sturdy frame that allows for stability in small and large dimensions, in height and width, the stainless steel structure is laser cut, technology that allows us to obtain a high precision and a perfect assembly! The optimum inclination is 75°
The screen elements from 3/6/9mm and more, are made of high performance reinforced technopolymer with glass fiber and designed to last 10/15 years.
This result has been obtained after a careful study and analysis of metal-replacement, this innovative design activity offers the best solutions and is able to indicate with high precision which are the best solutions.
With this design solution, we have obtained an optimisation of performance with high physical-mechanical characteristics, resilience, toughness, ductility, resistance to high temperatures, chemical substances and ageing, all of these characteristics allow an ideal and specific use in wastewater screening.
The screen elements are hinged together to form a conveyor belt that turns vertically inside the machine, are interchangeable and if there is a modulation in the requirements for solid-liquid separation, the belt can be replaced keeping the same structure and frame of the machine.
Other advantages are: very low maintenance, almost non-existent, very fine or coarse customised filtration starting from 1mm (extra production) and an average saving on overall costs, including periodic maintenance, of more than 30% compared to other types of equoments screeners.
All components necessary for the operation of the Mechanical Bar Screens are NOT in contact with water and easy to reach.
Main application of Mechanical Belt Screens:
Wastewater Treatment Plants: Purification plants for different processes separation of solids from civil, industrial or municipal.
Paper Mills Industries
Plastic recycling industries
Textile Industries: Tanneries and Laundries.
Beverage industry: Wineries producing, Beer, Fruit juices etc....
Food industries: Fruit and vegetable processing, Fish and Meat processing.
Customized Wastewater Screening Equipment
