Customized Vertical Screen

Vertical Screw Screen is installed directly in canals, pipes or wells for collects directly to their arrival water or the liquid to be treated both civil and industrial. It fits into tight places.

We proposes it as a multifunction machine, it combines screen and lifting. When it's equipped with compactor, performs compaction and dewatering of solids present in the waste. It can be constructed in stainless steel AISI 304L or 316L.

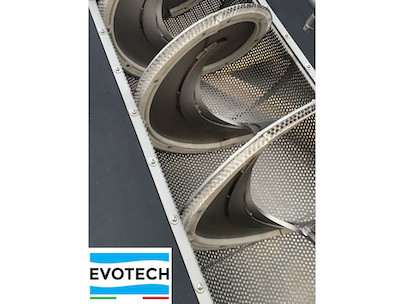

The conveyors screw turns inside a cylindrical tube and the waters gratings or liquid out of the basket that is cleaned by Polyamide brushes fixed in the outer screw, while the solids are dewatered, elevated and discharged. Transport zone lenght is variable according to the individual needs, filtration basket is proposed in two versions, Wedge Wire Screen: can filter from 0.25 to 3 mm or perforated: varies from 2mm to 10mm.

Main Applications of Vertical Screw Screen

Wastewater: treatment plants system for different processes solids separation from water, liquid or sludge industrial civil  and municipal.
Chemical industries: plastics, paints, solvents, oil and greases.
Bevarage Industries: distillery, wine cellar, brewery, etc…
Textile Industries: tanneries, laundry
Food Industries: fruits, vegetables, fish and meat processing. Milk and cheese producers.

Wastewater treatment equipment

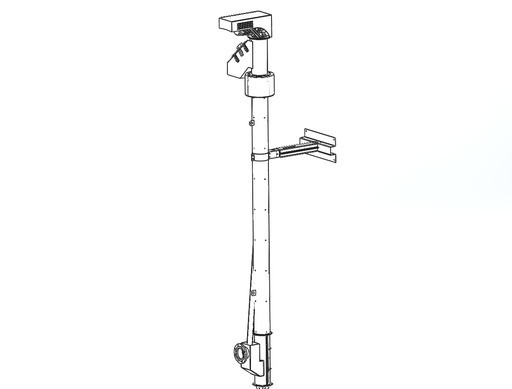

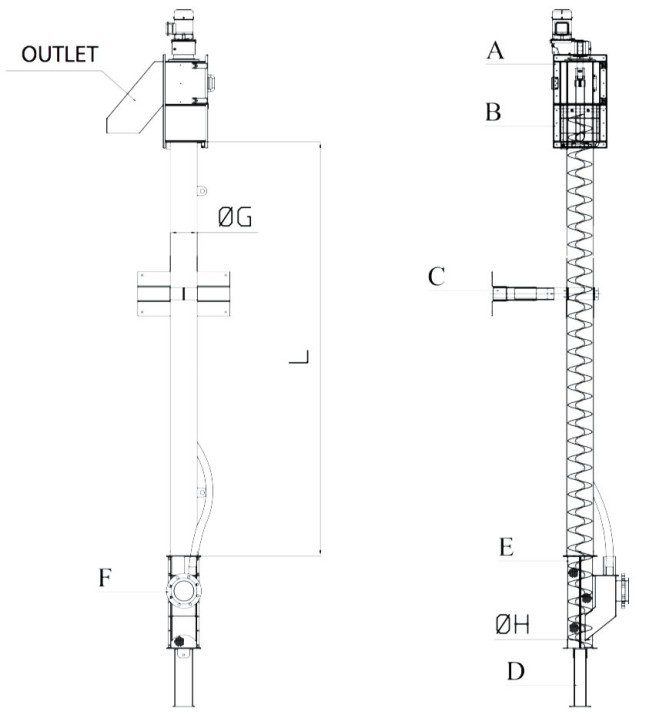

Filtro coclea verticale dwg.jpg
Filtrococlea verticale tabella.png
Filtrococlea verticale tabella.png
