Multiple Screw/Auger Conveyor

Bi-direction screw conveyor or multiple screw conveyor, finds its field of application when you have to carry large amounts of material, or when the material are large solids/pieces.
Although it is considered to a special conveyor machine, it is customizable depending on the requirements, it is used in differents industries and it has reduce maintenance costs.

The augers may be with or without internal shaft, they are installed in a W double canal and can be synchronized or independent because they are connected to different engines.
It’s possible to insert hoppers, covers for cleaning and anchor foot.

This machines are equipped with a wear-resistant coating in HD polyethylene or stainless steel spirals, it can also be made by carbon steel.
The construction material is stainless steel AISI 304L or 316L.

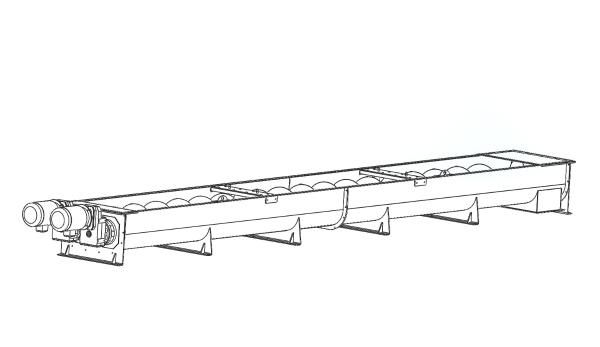

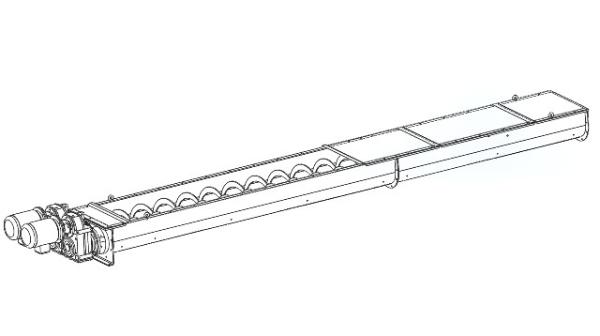

Auger conveyor

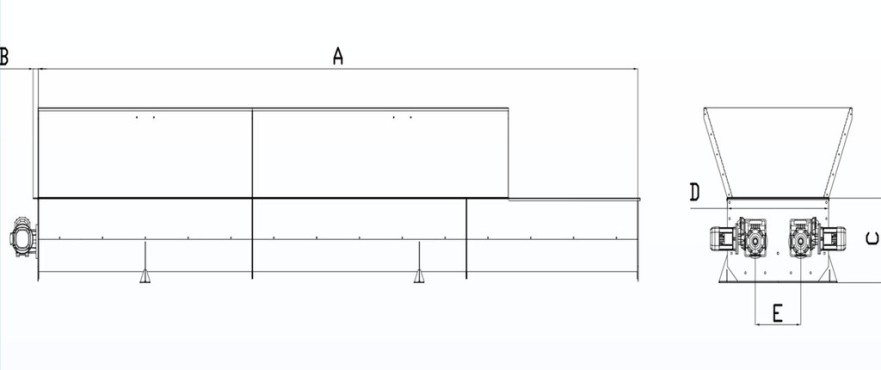

disegno coclea di trasporto.jpg
